Product Description
We sell pulse oximeters to measure the heart rate and amount of oxygen saturation in the blood (SpO2), including the latest NONIN professional oximeter - the Onyx Vantage 9590.

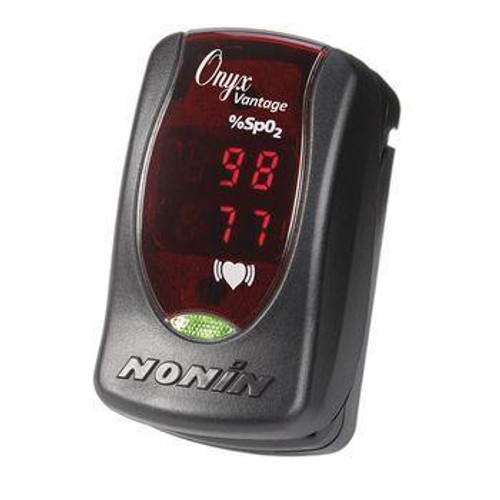

The Nonin Onyx Vantage 9590 fingertip oximeter gives the first responder and clinician the information needed to manage and monitor patient oxygen saturation and pulse rate levels.
Nonin Advantages:
- The Onyx is the only finger pulse oximeter with scientifically proven accuracy and is tested for use on fingers, thumbs and toes.
- Proven Accuracy – Scientifically proven accuracy in the widest range of patients.
- Reliable Results – Accurate readings on challenging patients due to low perfusion and darker skin tones. Tested in motion.
- Versatile – Units work on pediatric to larger adult patients and can be used on fingers, thumbs or toes.
- Cost Efficient – 4-year warranty and up to 6,000 spot checks on two AAA batteries.
Product Highlights:
- Clinician-facing, easy-to-read, bright LED – SpO2 and pulse rate can be read from any angle, in all lighting conditions, day or night.
- Three-color pulse quality indicator LED – Green, yellow or red light provides a quick assessment of patient pulse quality.
- Accuracy in the widest range of patients and conditions – Only Nonin uses PureSAT® SpO2 technology – an intelligent pulse-by-pulse filtering to provide accuracy in situations that are challenging due to dark skin tones, low perfusion and more.
- One product for pediatric to adult patients – Automatically adjusts to each patient from pediatric to adult quickly and accurately and accommodates fingers, thumbs and toes with digit thicknesses 8 mm to 25.4 mm (0.3" to 1.0").
- Proven durability – Onyx Vantage is tough enough to withstand a minimum of 50 drops, is rugged enough to be used in the most demanding situations and exceeds IP32 water ingress testing.
- Automatic turn on and off – No on/off button! Just insert digit for fast and easy spot checks.
- The auto-on/off mechanism allows two AAA batteries to provide up to 6,000 spot checks before being replaced!
- Portable – Take the Onyx Vantage anywhere — it is lightweight and weighs less than two ounces.
- Available in four colors – Black, Red, Blue and Purple.
- Complete with lanyard, instructions on CD and two AAA batteries.
Specifications
Dimensions .................................................... 5.59 cm (2.2”) L x 3.3 cm (1.3”) W x 3.23 cm (1.27”) H
Warranty........................................................ 4 years
Oxygen Saturation Display Range................... 0 – 100%
SpO2 Pulse Rate Display Range...................... 18 – 321 beats per minute (BPM)
Oxygen Saturation Declared Accuracy
Range (Arms*) ........................................... 70 – 100% SpO2 ±2 digits
Low Perfusion Oxygen Saturation Declared Accuracy
Range (Arms*) .......................................... 70 – 100% SpO2 ±2 digits
Pulse Rate Declared Accuracy
Range (Arms*) ........................................... 20 – 250 BPM ±3 digits
Low Perfusion Pulse Rate Declared Accuracy
Range (Arms*) ........................................... 40 – 240 BPM ±3 digits
Measurement Wavelengths and Output Power**
Red .......................................................... 660 nanometers @ 0.8 mw maximum average
Infrared .................................................... 910 nanometers @ 1.2 mw maximum average
Temperature
Operating ................................................. -5° to +40°C (+23° to +104°F)
Storage/Transportation ............................. -40° to +70°C (-40° to +158°F)
Humidity
Operating ................................................. 10 – 90% non-condensing
Storage/Transportation ............................. 10 – 95% non-condensing
Altitude
Operating ................................................. Up to 12,192 meters (40,000 feet)
Hyperbaric Pressure .................................. Up to 4 atmospheres
Battery Life
Operating.................................................. Approximately 6,000 spot-checks or 36 hours of continuous operation using new AAA-size alkaline batteries
Storage ..................................................... 12 months
Classifications per IEC 60601-1 / CAN/CSA-C22.2 No. 601.1 / UL 60601-1:
Degree of Protection ....................................... Type BF-Applied Part
Mode of Operation ......................................... Continuous
Enclosure Degree of Ingress Protection ............ IP32
This product complies with ISO 10993-1, Biological evaluation of medical devices – Part 1: Evaluation and testing. *±1 Arms represents approximately 68% of measurements. **This information is especially useful for clinicians performing photodynamic therapy. Specifications are subject to change without notice
